Moxin 60kW Wheelie-Assist Controller for Sur-ron, Talaria and E-RidePro

This is the all-new Moxin S801100controller. It features a built-in gyroscope and wheelie mode that lets you wheelie the bike without actually flipping it - an ideal solution for anyone learning to wheelie.

Compatibility

• Sur-Ron Light Bee
• Sur-Ron Ultra Bee
• Talaria MX4 / MX5
• Talaria X3
• 79 Bike Falcon
• E-RidePro SS

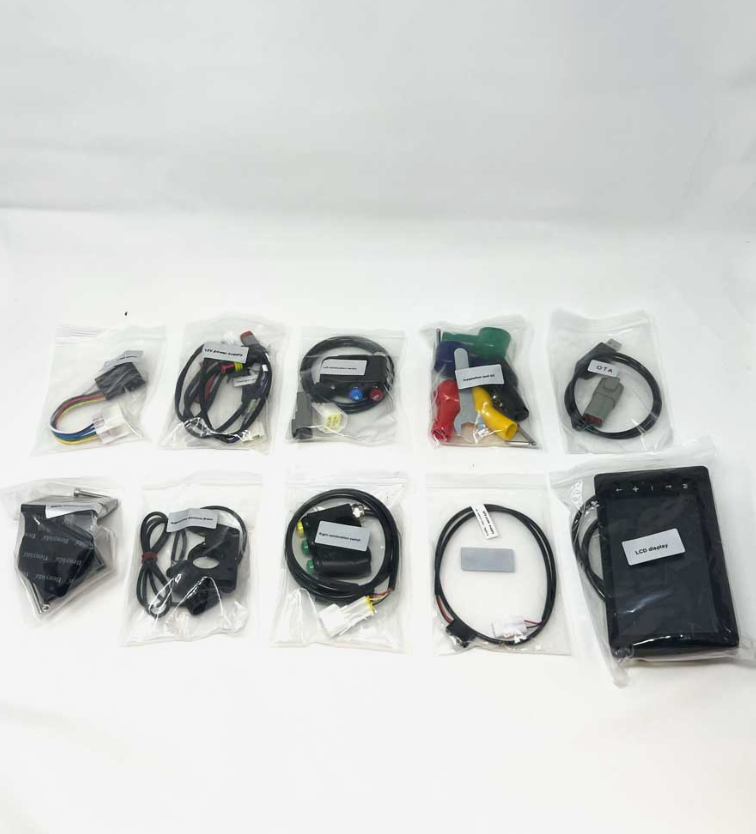

Package Contents

• Moxin Controller
• LCD display (3″, 5″, or 7″) + mounting bracket
• Left/right combination switch
• Installation tool kit
• Regen (linear electronic brake)
• Encoder-to-Hall adapter harness
• OTA (over-the-air) update module

Technical Specifications

• Rated voltage: 48 V–80 V
• Peak phase current: 1,100 A
• Peak power (10 s): 61.6 kW (80 V × 770 A)
• Max speed:
  • 1-pair: 200,000 RPM
  • 4-pair: 50,000 RPM
  • 16-pair: 12,500 RPM
• Waterproof: IP68 (10 m)
• Continuous bus current: 500 A
• Control response: 1,000 Hz (1 ms)
• Dimensions: 194 × 98 × 58 mm
• Weight: 1.7 kg
• Short-circuit current: ±1,500 A (response time 5 μs)

Motor Compatibility

Compatible with 6-pin Hall motors and 7- or 8-pin encoder motors, including:

1. Stock Light Bee motor (Hall/SPM)*
2. Stock Ultra Bee motor (Encoder/IPM)*
3. Stock Sting 8.0 motor
4. KO encoder motor (Hall)
5. Stock E-Ride motor (Encoder)
6. QS Motor QS165 / QS138 (Encoder)
7. EBMX XLB-60 (Hall)
8. EBMX XUB-80 (Hall)
9. SOTION LTXS motor (Encoder)

We recommend upgrading to a 20–30 kW motor for best performance.

Note: Not compatible with the TORP TM40 Pro motor without modifying the connector to match our wiring
